Trips and parkings for Aramco

The Trips and parkings for Aramco report provides information about vehicle movement and parking periods during the selected reporting period. It allows you to reconstruct the sequence of trips and parkings, determine their times and durations, view start and end addresses, calculate the distance traveled, and review summary operating indicators.

• Status — the object status: Movement or Parking, together with the event sequence number

• Beginning — the date and time when the movement or parking period began

• End — the date and time when the movement or parking period ended

• Dur — the duration of the corresponding movement or parking period

• Distance (km) — the distance traveled during the movement period; no value is displayed for a parking event

• Start — the trip start address or parking location

• Stop — the trip end address; this value may not be displayed for a parking event

• Coordinates — the coordinates of the beginning and end of the trip or the parking location

For a Movement event, the Coordinates column displays two coordinate pairs: the first corresponds to the beginning of the movement and the second to its end. For a Parking event, the coordinates of the parking location are displayed.

The addresses in the Start and Stop columns are displayed as links and allow you to open the corresponding locations.

The Parkings and Tracks options are available at the top of the generated report. They allow you to change which events are displayed:

• Parkings and Tracks selected — the complete sequence of events is displayed

• Tracks selected only — only movement periods are displayed

• Parkings selected only — only parking periods are displayed

Select or clear the corresponding checkbox to show or hide an event type.

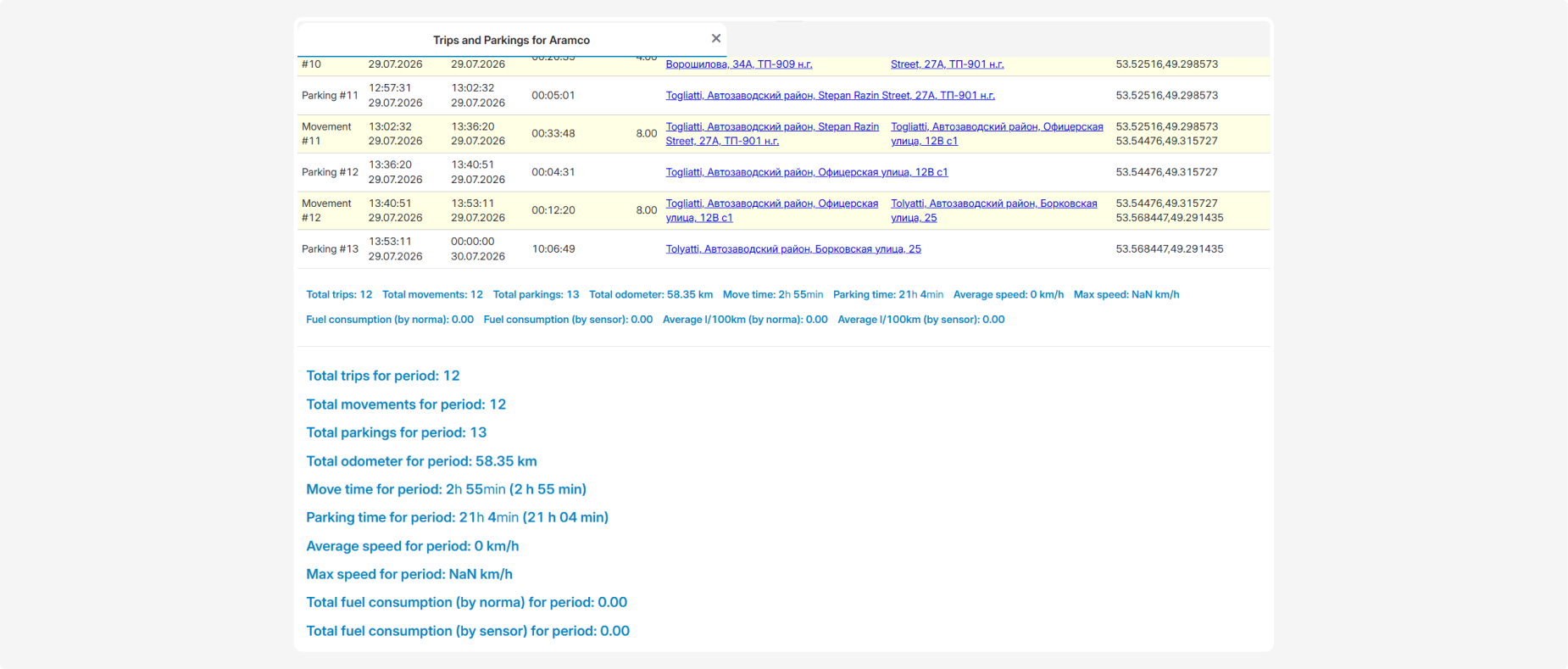

Summary indicators are displayed below the table, first for the current object or report block and then for the entire selected period:

• Total trips — the total number of trips

• Total movements — the number of recorded movement periods

• Total parkings — the number of recorded parking periods

• Total odometer — the total distance traveled by the vehicle

• Move time — the total duration of all movement periods

• Parking time — the total time the object was parked

• Average speed — the vehicle’s average speed during the selected period

• Max speed — the highest speed recorded during the selected period

• Fuel consumption (by norma) — the calculated fuel consumption based on the configured consumption rate

• Fuel consumption (by sensor) — the fuel consumption calculated from sensor readings

• Average l/100km (by norma) — the calculated average fuel consumption per 100 km based on the configured rate

• Average l/100km (by sensor) — the average fuel consumption per 100 km calculated from sensor readings

A separate summary section displays the same indicators calculated across all data included in the report:

• Total trips for period

• Total movements for period

• Total parkings for period

• Total odometer for period

• Move time for period

• Parking time for period

• Average speed for period

• Max speed for period

• Total fuel consumption (by norma) for period

• Total fuel consumption (by sensor) for period

Before building the report, you can enable the Chart option.

When enabled, a timeline showing the sequence of movement and parking periods appears above the report table.

The Chart displays:

• Horizontal axis — the date and time within the reporting period

• Parking — periods when the vehicle was not moving

• Moving — periods when the vehicle was moving

The Chart helps you determine when the object was moving or parked, compare event durations, and identify extended periods without movement.
